225000 INR/Unit

Product Details:

X

Price And Quantity

  • 225000 INR/Unit
  • 1 Unit

Trade Information

  • 100 Unit Per Month
  • 5-7 Days
  • All India

Product Description

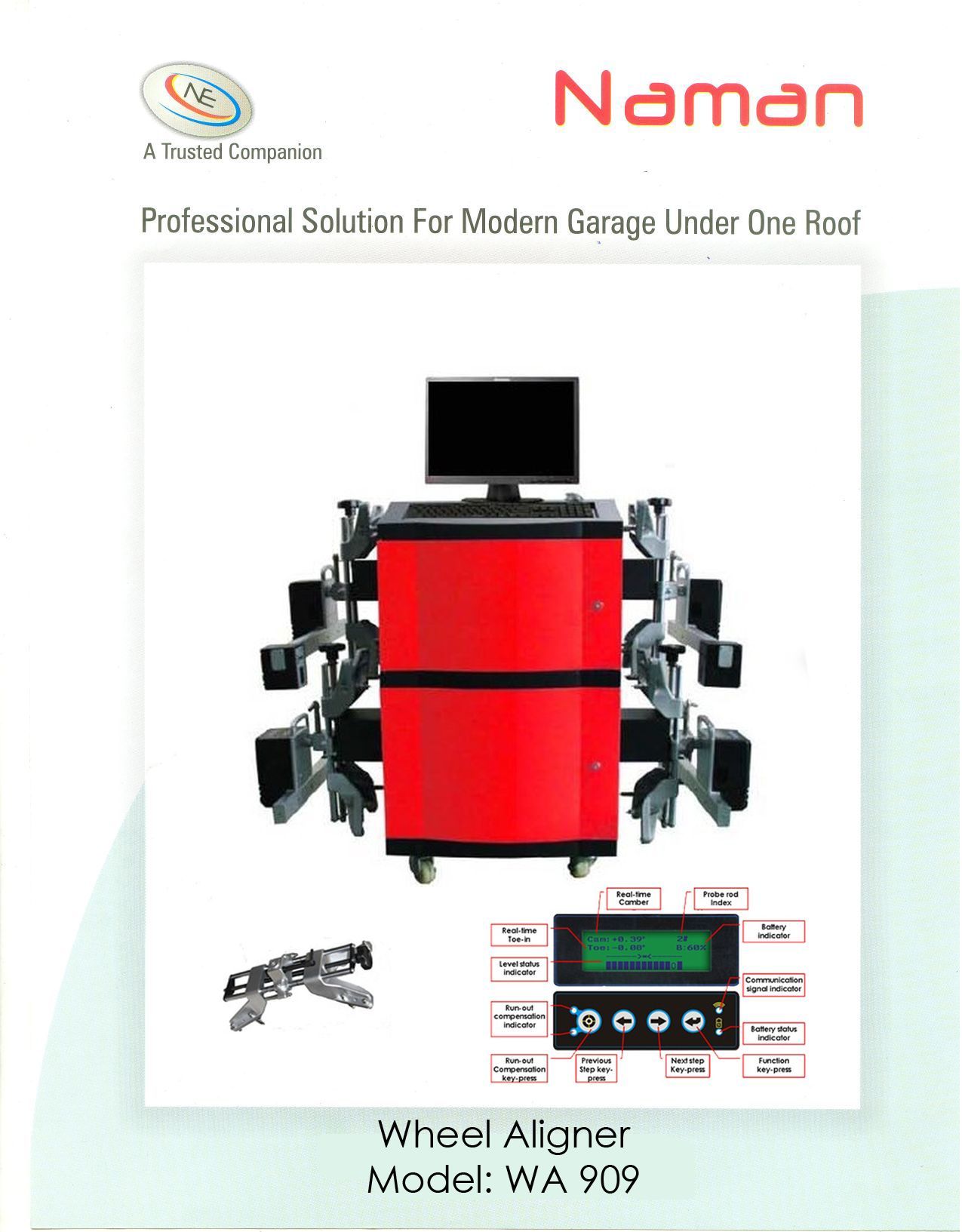

Our team of highly qualified & experienced workforce helps us in manufacturing and supplying Computerised CCD Aligner. All the characteristic angles of both vehicle axles are controlled in the machine by means of four measuring heads with 8 CCD sensors and infra-red transmission. The wheeled control unit houses the data processing and management computer, the printer ( colour ink jet A4 format) and the high-resolution monitor. Special supports on the side of the control unit permit hosing and recharging the head batteries. We offer this Computerised CCD Aligner at market leading prices to clients.



Features of Computerised CCD Aligner:

  • Data management and display program
  • Data parameterization according to vehicle height
  • Has a brake pedal presser
Computerised CCD Aligner

The MATRIX wheel aligner thanks to its innovative design concept and use of sate-of- the-art technologies and components represents the very best choice in terms of price/ performance ratio. All the characteristic angles of both vehicle axles are controlled by means of four measuring heads with 8 CCD sensors and infra-red transmission (6 CCD sensors on ARS 660 PC and 4 on ARS 640 PC) The wheeled control unit houses the data processing and management computer, the printer ( colour ink jet A4 format) and the high-resolution monitor. Special supports on the side of the control unit permit hosing and recharging the measuring- head batteries when these are not used. Big wheels for easy movement inside the workshop

* Data management and display program in windows environment

* Data bank with more that 20000 vehicle data sheets already entered and further 1000 blank sheets to be filled.

* Data parameterization according to vehicle height

* Customer data bank for recording 20.000 jobs with search by customer name or vehicle licence plate number.

* Model ARS 640 PC, with tow front measuring heads equipped with 4 infra red transmitters, makes it possible to measure all steering angles, operating first on the rear axle and then on the front one.

* Control unit complete with PC, Monitor, keyboard, printer and battery-charger

* Rear measuring heads 2 Rear measuring heads (ARS 660 PC- 680 PC)

* 1Brake pedal presser

* 1steering clamp

* Instruction manual.

Specification

Minimum Order Quantity 1 Unit
Power Supply 220 V,1 phase
Camber +/- 20 degree with +/- 2′
Castor +/- 20 degree with +/- 4′
Thrust Angle +/- 5 degree with +/- 3′
Total Toe +/- 10 degree with +/- 2′
Wheel Setback +/- 5 degree with +/- 2′
Kingpin Inclination +/- 20 degree with +/- 4′
Load Capacity of Turntables 600 Kg
No. of beams 8
Wheel Size Range 10 – 20 inches
Individual Toe +/- 5 degree with +/- 2′
